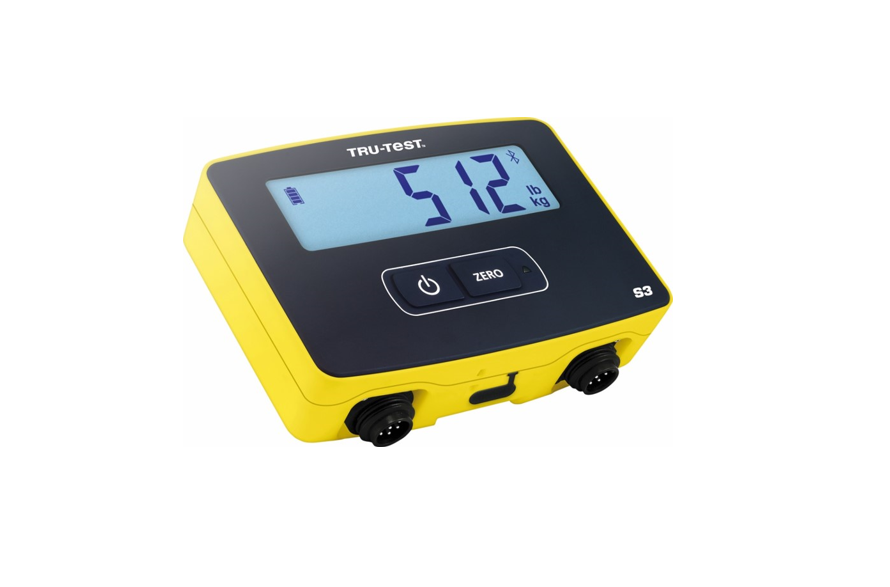

Tru-Test S3 weigh scale indicator, front view showing a 512 lb reading and the on/off and zero buttons
Tru-Test S3 indicator at an angle, showing the yellow case and cable connectors underneath

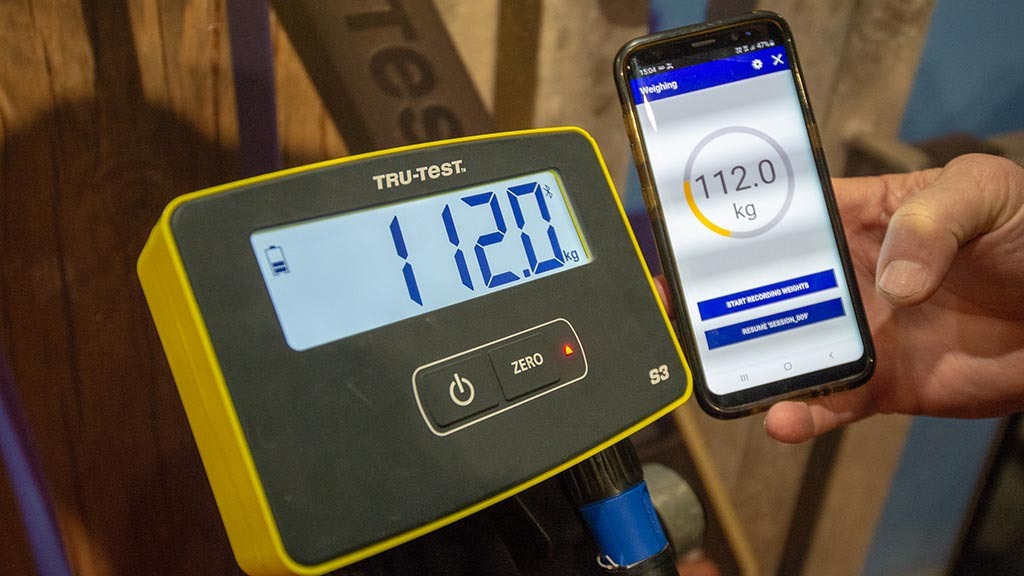

Tru-Test S3 showing 112.0 kg beside a phone displaying the same weight in the app
Tru-Test S3 weigh scale indicator, front view showing a 512 lb reading and the on/off and zero buttons
Tru-Test S3 indicator at an angle, showing the yellow case and cable connectors underneath
Tru-Test S3 showing 112.0 kg beside a phone displaying the same weight in the app

Tru-Test S3 Weigh Scale Indicator with Bluetooth

$1,838.99 CAD Sale • Save

The Tru-Test S3 Weigh Scale Indicator is a two-button scale head for producers who want weights shown clearly and recorded on their phone. Over Bluetooth Low Energy, the S3 sends each weight to the Datamars Pro app, and it comes pre-calibrated for leading non-Tru-Test load bars, which you select in the app.

Among our weighing-only systems, the S3 is the stripped-back option. On/off and zero are the only buttons, and every other setting lives in the Datamars Pro app or the Data Link PC program. The high-contrast display reads on the brightest day, the LED backlight takes over in failing light or a dark shed, and a red LED lights when the weight is stable. Superdamp III technology is built to capture live weights quickly.

Each weight and visual ID you record in the app shows on your phone, can be emailed or shared, and is available online in Datamars Livestock, whose base plan comes free with the S3. Set the S3 to kg or lb: in pounds it reads in 1 lb steps up to 500 lb and coarser steps above that. The internal rechargeable battery is rated at 15 hours, and the IP67 enclosure handles yard conditions, though neither the indicator nor the load bars should be left sitting in water.

To build a complete scale, Tru-Test pairs the S3 with Tru-Test MP600 load bars as the S3 Weigh System, or you can add a weighing platform from our weighing platforms and crates to finish the package. For weighing in a squeeze chute, Tru-Test lists its HD5T load bars as compatible with any Tru-Test scale indicator, including the S3. Bars from other makers that are not on the pre-calibrated list need a span calibration. If you need sorting into groups, more data per animal or a bigger screen, step up to the Tru-Test ID5000 with its 7 inch display and 5-way sorting, or the Tru-Test XR5000 with 1 million records and 10 drafting groups. Our guide to matching a livestock scale to your operation weighs load bars against platforms.

In the box: S3 indicator, mounting bracket and USB cable.

Controls 2 buttons: on/off and zero; all other settings in the app or PC software
Connectivity Bluetooth Low Energy
Software Datamars Pro app (phone), Data Link (PC), Datamars Livestock base plan included
Display High-contrast screen with LED backlight; red LED shows a stable weight
Weighing Superdamp III
Units kg or lb
Default resolution 1 lb to 500 lb, 2 lb to 1,000 lb, 5 lb to 2,000 lb, 10 lb above (0.5, 1, 2 and 5 kg)
Load bars Pre-calibrated for leading non-Tru-Test bars; others need a span calibration; sold as the S3 Weigh System with MP600 bars
Battery Internal rechargeable, rated 15 hours
Enclosure IP67 (do not leave submerged)
Dimensions 177 x 128 x 50 mm (7 x 5 x 2 in)
Weight 0.55 kg (1.2 lb)
Suitable for Beef, cows, pigs and sheep
Tru-Test part number 880 0002-591

<ul>
<li>Easy to see weights, no matter the conditions.</li>
<li>Bluetooth<sup>®</sup> Low Energy connectivity.</li>
<li>Record weights and configure settings with the app.</li>
<li>Rugged and waterproof, to withstand the toughest enviroments.</li>
<li>Rechargable battery with 15 hour life.</li>
<li>To complete a full Tru-Test S3 Package pair with these options</li>
<li>Weighing Platform</li>
<li>MP600 Loadbars</li>
</ul>

<p><strong>DIMENSIONS (WXHXD): </strong>(WXHXD): 7” x 5” x 2” (177 mm x 128 mm x 50 mm)</p>
<p><strong>WEIGHT: </strong>1.2 lb (0.55 kg)</p>

<p><a href="https://www.livestock.tru-test.com/sites/default/files/manuals/S3%20Indicator%20Quickstart%20Guide%20%28EN%2CES%2CPT%2CFR%2CDE%29_1.pdf#manuals">Manuals</a></p>
<p><a href="https://www.livestock.tru-test.com/sites/default/files/datasheets/S3%20Datasheet%20NAM.pdf#product_data_sheets" data-mce-href="https://www.livestock.tru-test.com/sites/default/files/datasheets/S3%20Datasheet%20NAM.pdf#product_data_sheets">Product Data Sheet</a></p>

<p><iframe src="https://www.youtube.com/embed/AAzvPhD0A6o" height="315" width="560" allowfullscreen="" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" frameborder="0"></iframe></p>

Need Help With Your Project?

At FenceFast we have over a decade of highly specialized experience setting up fencing and animal management systems.

Let us help you plan yours!

Learn More
Frequently Asked Questions

Pre-calibrated settings in the Tru-Test S3 weigh scale indicator cover leading non-Tru-Test load bars, which you pick in the app, and bars outside that list need a span calibration before use. Tru-Test also sells the S3 with MP600 load bars as the S3 Weigh System.

The Tru-Test S3 uses the Datamars Pro app on your phone and the Data Link program on a PC. Weights recorded in the app are available online in Datamars Livestock, and the Datamars Livestock base plan is included free with the S3.

The Tru-Test S3 has an internal rechargeable battery rated at 15 hours of use per charge. Tru-Test also quotes up to 20 hours elsewhere, so we use the lower 15 hour figure until we confirm it in the field.

Yes. The Tru-Test S3 can be set to pounds or kilograms. In pounds the S3 weighs in 1 lb steps up to 500 lb, 2 lb steps to 1,000 lb, 5 lb steps to 2,000 lb and 10 lb steps above that.
